Cyclone Assemblies Type 17 Trimdeck 14-10x65 HEX Class 4 Coating

cyclone_assemblies_-_type_17_trimdeck_-_spandeck


+

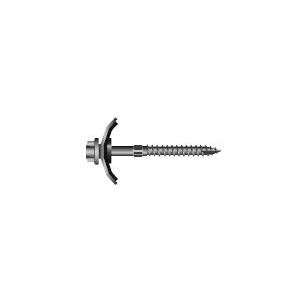

Cyclone Assemblies Type 17 Trimdeck/Spandek 14 gauge-10 threads per inch x 65mm long screw Class 4 coating

Cyclone Assembly Type 17 Trimdek/Spandek screws are for fastening the crest of square rib profiles to timber and thin metal battens.

Type 17 screws are a self drilling point for fastening into timber. The hardened point will also drill through thin metals up to 0.75mm thick that makes this point suitable for fastening sheets to timber battens. The screw threads extend down the point thus the screw "pulls" itself into the timber that reduces the required drilling pressure and reduces the risk of stripping of threads due to "over running".

The Class 4 corrosion protection system meets the requirements of ISO 9223 Category 4 (Outdoor application for moderate and severe environments).

AS 3566.2 (Self drilling screws for the building & construction industries) specifies the corrosion protection systems required on screw fasteners Classes 1, 2, 3 & 4 where Class 1 is intended for indoor application and Class 4 for environments up to and including ISO 9223 Category 4 (Severe industrial and severe marine environments).
